Terex Ecotec TDS 820E

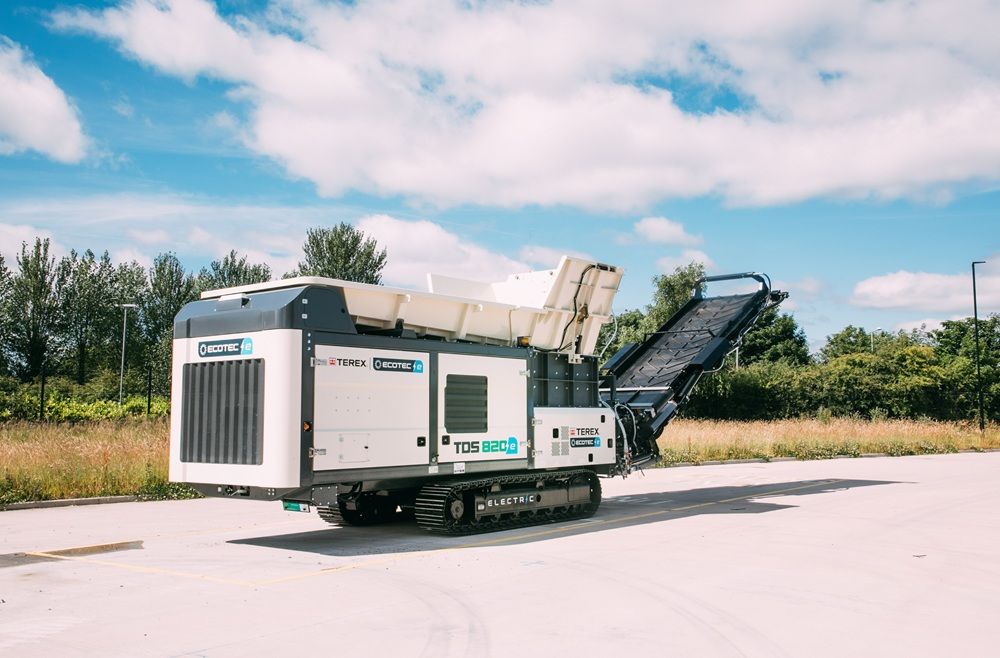

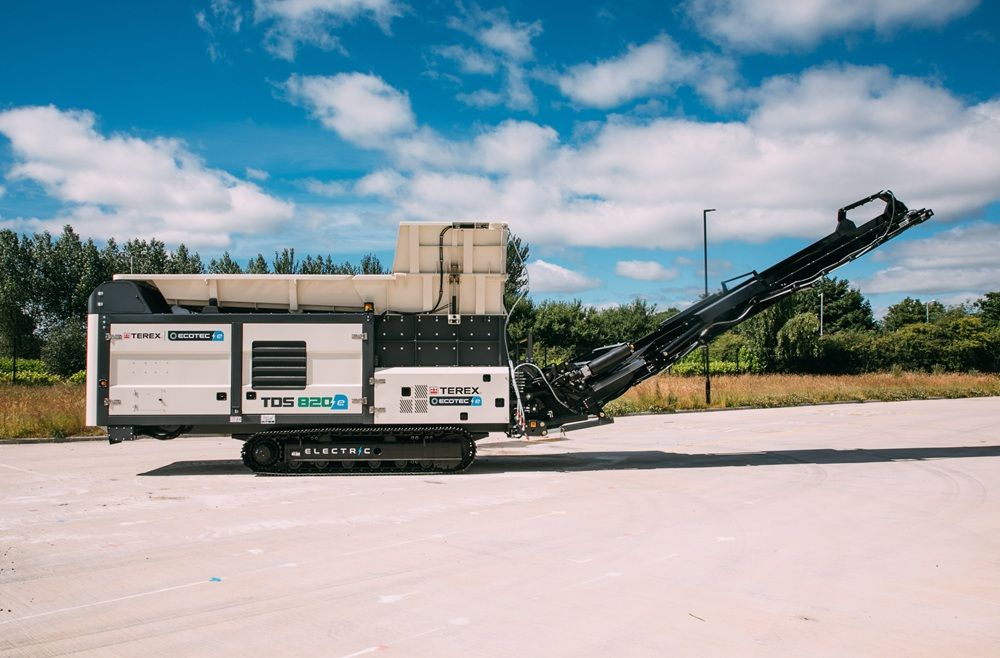

Ecotec’s TDS 820E Mobile Electric Slow Speed Shredder offers customisable shredding programs, allowing operators to tailor performance, reduce wrapping, and maximise output. Its independently driven double shafts ensure reliable, high-performance shredding even in demanding applications. Key features include an electric/hydraulic hydrostatic drive for enhanced contamination protection and bi-directional shredding. The 2-metre fully welded tooth shafts deliver high throughput and strong material reduction, while independent gearboxes let each shaft run separately to further limit wrapping. Additional benefits include a tipping feeder for an expanded feed area, hopper extensions for increased capacity with bulky materials, and a compact tracking engine powering the robust tracked undercarriage for easy manoeuvrability.

View brochure

Technical specification

Equipment

Slow-Speed Shredders
Application

Recycling & Energy
Shaft Length

2000mm
Electric Motor

280kW WEG
Engine

CAT C2.2 75hp
Weight

29,000kg

Key features

A highly efficient WEG electric motor combined with a hydrostatic drive creates a very responsive shredding action with protection against unshreddable contaminants.
Small CAT C2.2 tracking engine facilitates on-site movement and machine set up when not connected to the mains power.
Robust German designed shredding chamber, with independently driven shafts that give excellent shredding performance in even the most challenging of applications.
Excellent service access reduces operator downtime.
