Terex Ecotec TBG 630

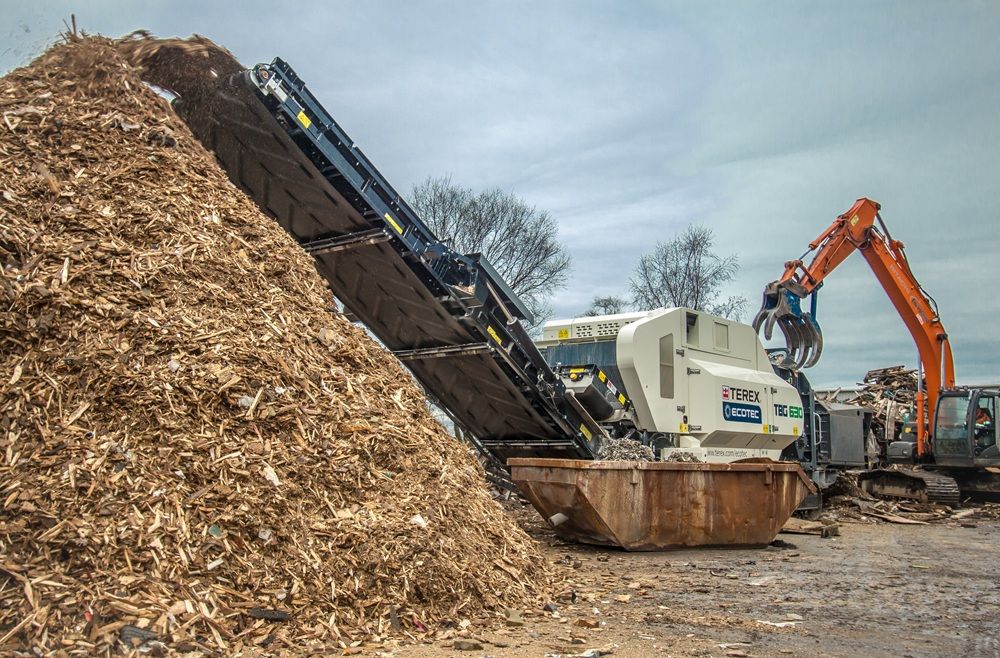

The Terex Ecotec TBG 630 is built for medium to large-scale biomass and green waste processing. Powered by a 661HP V8 Scania engine, it delivers exceptional throughput and easy maintenance. Its open-front feeder, heavy-duty drag chains, and powerful feed wheel maximise the performance of the 1,100mm x 1,750mm swinging hammer rotor. A range of hammer options and customisable screens ensure precise material specifications. To protect against metal contaminants, the intelligent screen-opening system enables quick discharge, reducing damage risk. The unique layout and maintenance catwalks provide full engine access for hassle-free servicing. With an industry-leading 5.1m conveyor discharge height, the TBG 630 optimises stockpiling and simplifies material handling.
Technical specification
-
EquipmentHigh-Speed Shredders
-
ApplicationRecycling & Energy
-
Infeed dimensions780mm x 1,700mm
-
EngineScania DC16
-
Engine power661hp
-
Weight35,600kg
Key features
- 1000rpm upturn rotor with 36 swinging hammers
- Extra-large screening area with kickback for unshreddable material
- Intelligent feed system and feed wheel lift/downward assist
- Over 5m discharge height at 35° - Max speed 220m/ min
