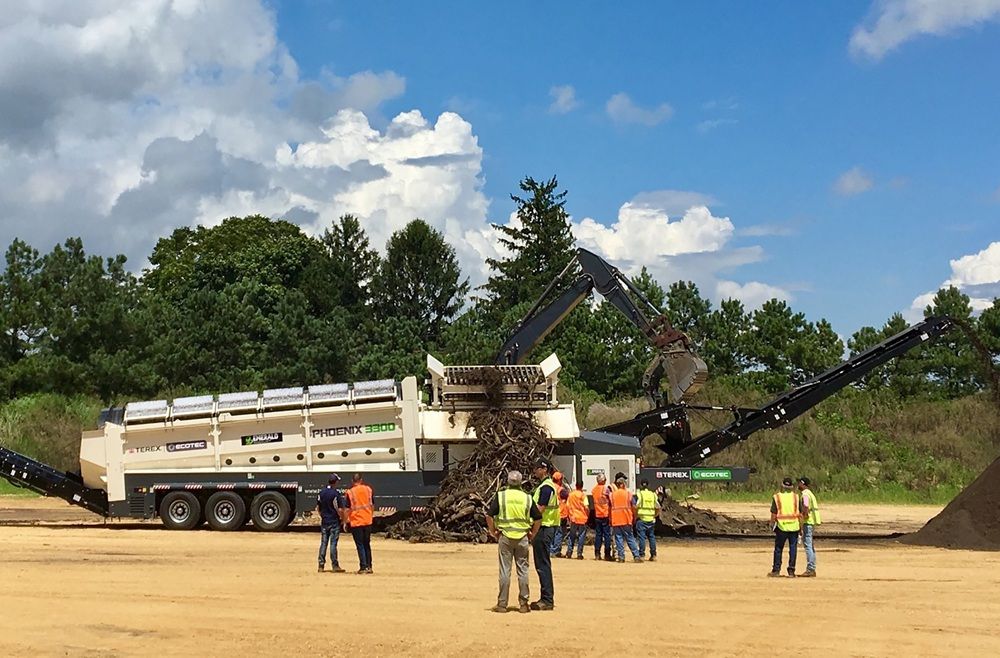

Terex Ecotec Phoenix 3300 (Ecotec)

Ecotec’s Phoenix 3300 is the largest trommel screener in the range, engineered for high-volume performance and demanding applications. Its robust design supports optional heavy-duty tipping or double-deck vibrating grids, delivering excellent results in both heavy C&D material and large-scale compost production. A 180° swivel fines conveyor with a 5.8m (19’) discharge height produces substantial stockpiles and can be remotely operated while running to minimise downtime. Powered by Caterpillar Stage V engine, the Phoenix 3300 features powerful hydraulics, auto feeder speed control, and a four-wheel drive friction system for bi-directional drum operation. Interchangeable woven mesh or punch plate panels ensure application flexibility, while a fifth-wheel connection, triple axle bogie, and rapid set-up time make the machine highly mobile.

View brochure

Technical specification

Equipment

Trommel Screens
Application

Quarrying & Demolition
Recycling & Energy
Weight

37,500kg
Drum length

9.32m
Drum diameter

2.32m
Engine

CAT C7.1

Key features

The 180° swivel fines conveyor, with a discharge height of 5.67m (18’ 6”) results in the creation of impressive stockpiles.
Highly efficient in C&D applications and high volume compost applications.
Powerful four wheel drive system with high performance friction grip wheels is used to turn the trommel drum giving operators the ability to run bi-directionally.
Powerful hydraulics and intelligent feeder control system ensure the Phoenix 1600 is always working to its optimum.
