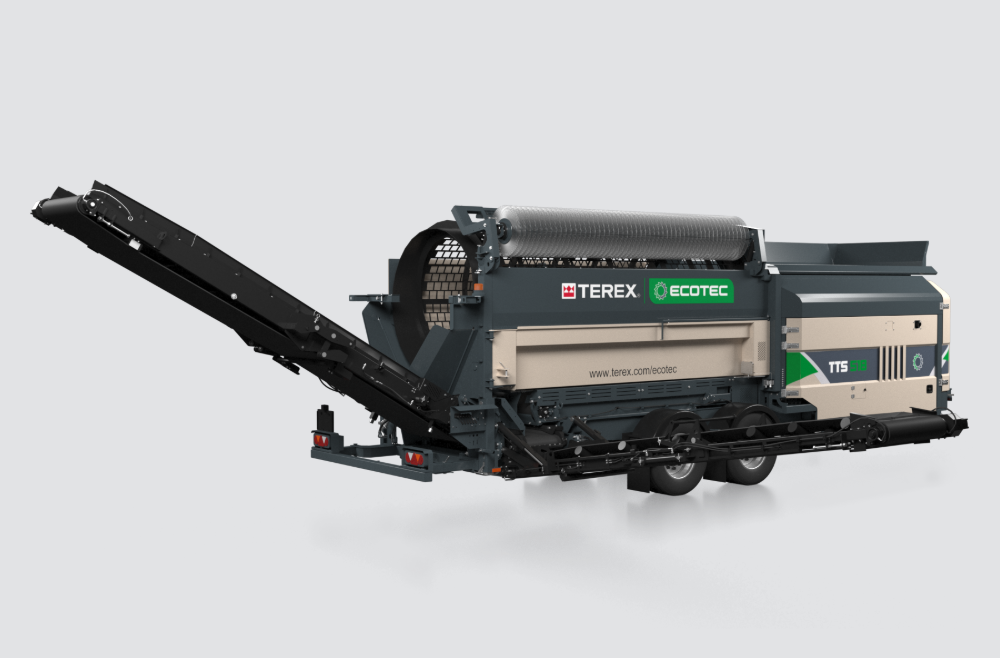

Terex Ecotec TTS 518

Ecotec’s TTS 518 Mobile Trommel is the most compact model in the range, offering exceptional flexibility, high production rates, and easy serviceability. Powered by a dual-certified Stage V engine and built with intelligent screening technology, it consistently delivers a superior, cost-efficient end product. Operators benefit from the same intuitive controls as the TTS 620, with simple push-to-start functions and intelligent feed control that automatically adjusts feeder speed for optimal throughput. Designed for versatility and ease of maintenance, the TTS 518 features a 23m² screening area, a 1.8m x 4.7m horizontal drum, and 180-degree drum access for quick changes. Its modular conveyors, slide-out feeder cassette, and swing-out engine cradle ensure fast, safe servicing from ground level. Compatible with drums from other manufacturers and available as an EU type-approved wheeled unit, it integrates seamlessly into existing fleets while keeping fuel use and operating costs low.

View brochure

Technical specification

Equipment

Trommel Screens
Application

Recycling & Energy
Drum diameter

1.8m
Drum length

4.7m
Engine

CAT C2.2 (74hp)
Weight

17,200kg

Key features

Easily replaceable 4.7m (15’5’’) x 1.8m (5’1’’) punch plate drum which is compatible with the Doppstadt SM 518
Advanced feeder control system offering efficient operation and maximised output
Double-sided unrestricted drum access via two large swing-out doors, enabling easy maintenance and cleaning
Swing out engine cradle providing operators with unrivalled maintenance access
