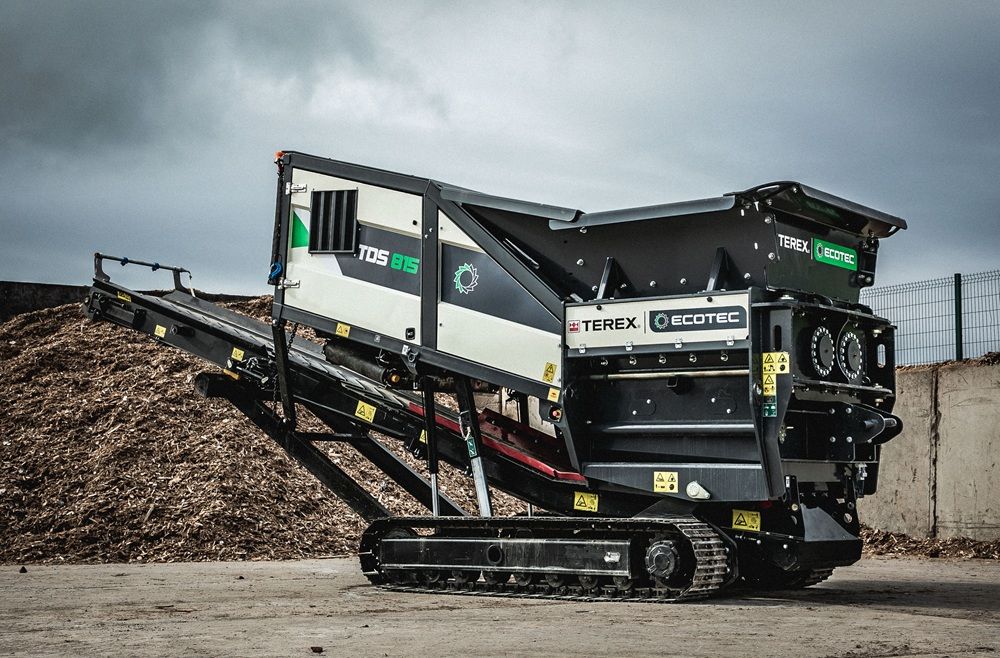

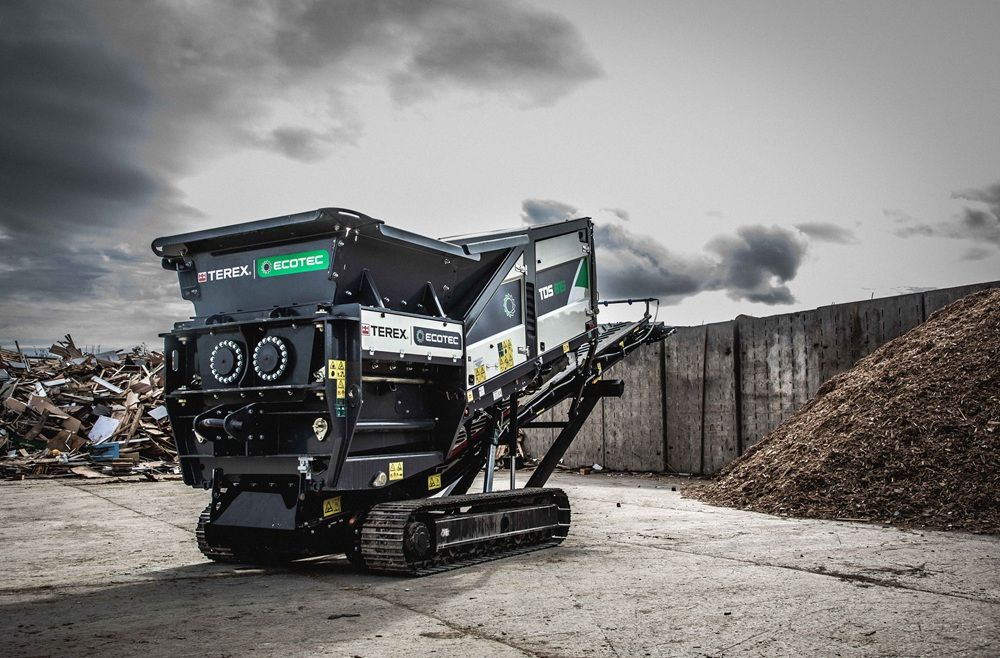

Terex Ecotec TDS 815

The Terex Ecotec TDS 815 Compact Slow Speed Shredder delivers high-performance waste processing in a compact footprint. Its 1.5m twin-shaft shredding unit provides efficient material reduction, while quick-change shafts maximise versatility and minimise downtime. Operators can run synced or independent shafts to suit specific applications. Powered by a CAT 4.4 140 kW Stage V engine, weighing 16,500 kg, and supported by the T-Link telemetry system, the TDS 815 is built for demanding environments including skip, bulky and household waste, C&D, wood, green waste, building materials, stone and asphalt. With a robust design, intelligent load-sensing hydraulics, and intuitive controls, the TDS 815 delivers reliable, adaptable and innovative performance across a wide range of waste streams.

View brochure

Technical specification

Equipment

Slow-Speed Shredders
Application

Quarrying & Demolition
Recycling & Energy
Shaft length

1500mm
Engine

CAT C4.4
Engine Power

188hp
Weight

16,500kg

Key features

Quick change replaceable combs and various apertures available.
High performance, twin shaft shredding chamber made from heavy duty steel with welded teeth.
Construction & demolition and waste shredding shafts available, which are quickly and easily changeable.
A powerful CAT engine with a low operating speed combined with an efficient hydrostatic drive creates a very responsive shredding action with protection against un-shreddable contaminants.
