The future of safe and efficient tree removal
Green-Tec TH3
Equipment
Tree Handlers
Application
Forestry & Arb
Max. Reach
12.8m
Operating weight
21,900kg
Engine
Deutz TCD 3.6
Dim.
9.52m (L) x 2.72m (W) x 3.43m (H)
Description

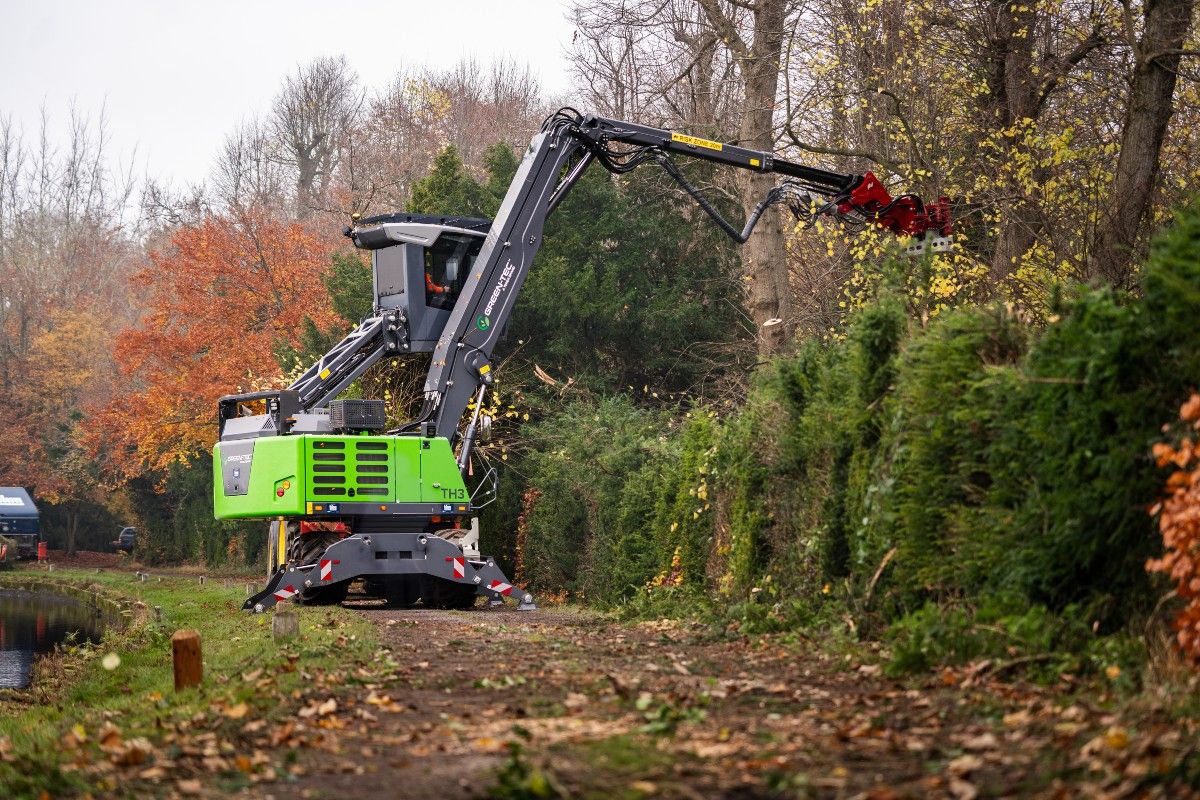

The Terex Green-Tec TH3 tree care handler features a specialised hydraulic circuit that supports a range of attachments for tasks such as tree felling, trimming, mulching, and grab sawing. Designed with safety and efficiency in mind, it boasts a tiltable cab for improved maneuverability. Its compact design and reduced slewing radius make it ideal for operation on busy roads, in congested areas, and in confined spaces. Equipped with forestry tires, all-wheel steering, a robust undercarriage, and excellent stability even at full reach, the TH3 excels in navigating challenging terrain effectively.
Key features
- All wheel steering reduces the machine's turning circle by 35%, offering a radius of 4.5m.
- Excellent cab which offers an eye level of up to 5.3m above ground and tilts up to 30°.
- The unique service platform ensures that servicing and maintenance tasks can be performed easily and safely.
- Polycarbonate windows offers the operator protection against chain shot.
