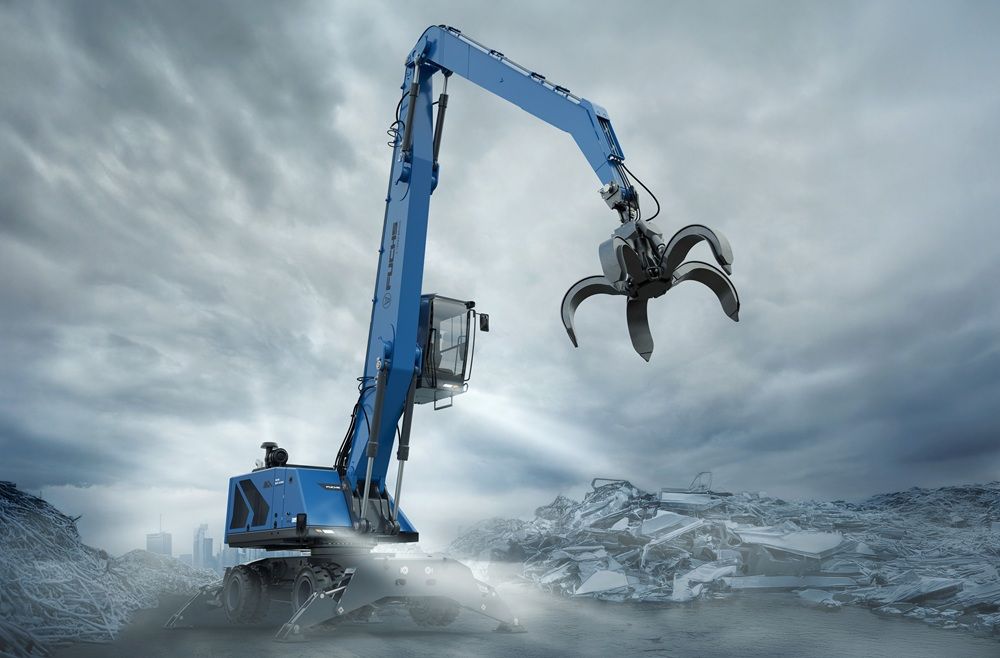

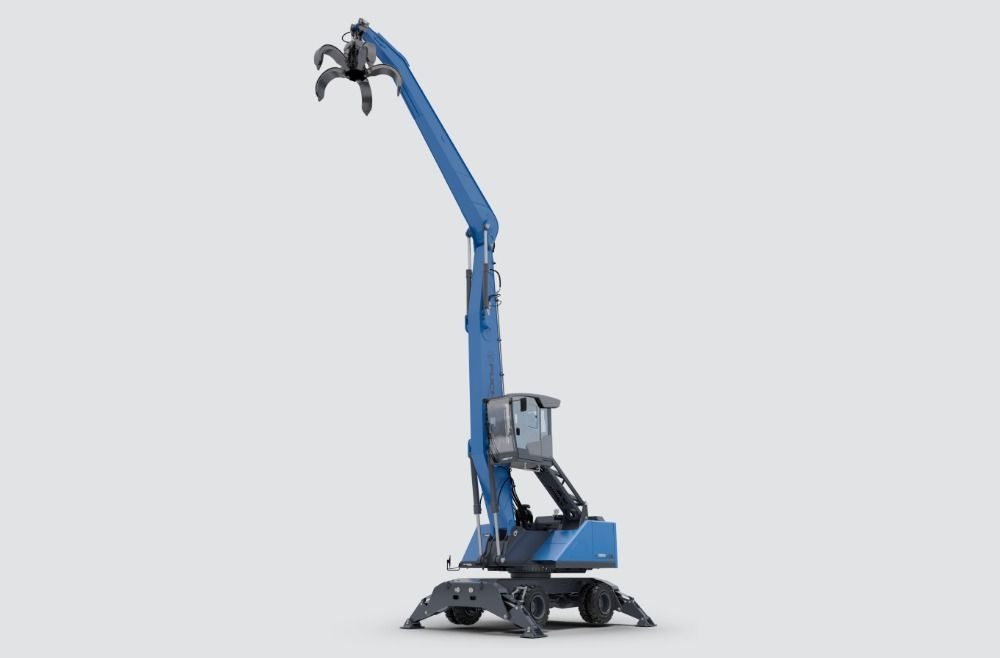

Fuchs MHL 350 G

The Fuchs MHL 350 G is a next-generation material-handler built for power, precision and operator comfort. Engineered with a 160 kW (215 hp) Stage V engine (or optional 132 kW electric drive) and weighing in at around 36 t, it achieves extended reach of up to 17m. Its cabin offers fully customisable controls, from joystick button layout to control sensitivity, a redesigned touch display with real-time work-zone live view and optional “virtual wall” limits for height and reach. On the technical side it boasts a closed-swing-circuit hydraulic system for fast rotation and high fuel-efficiency, HVO compatibility for eco-friendly use, and optional data/telemetry support plus service-packages billed by machine-hours to minimise downtime.

Technical specification

Equipment

Material Handlers
Application

Scrap
Ports & Rail
Max. reach

17m
Max. operating weight

36t
Viewing height

5.6m
Engine

Deutz TCD 6.1 L6

Key features

New camera technology provides optimal visibility and enhanced safety.
Extended reach of up to 17m, allows for larger work areas to be covered, completing tasks faster and with less effort.
Increased load capacity, making it more efficient and versatile in demanding applications.
Thanks to the generously sized service platform and even more maintenance friendly access to all relevant components, daily inspections and maintenance tasks are significantly easier.
